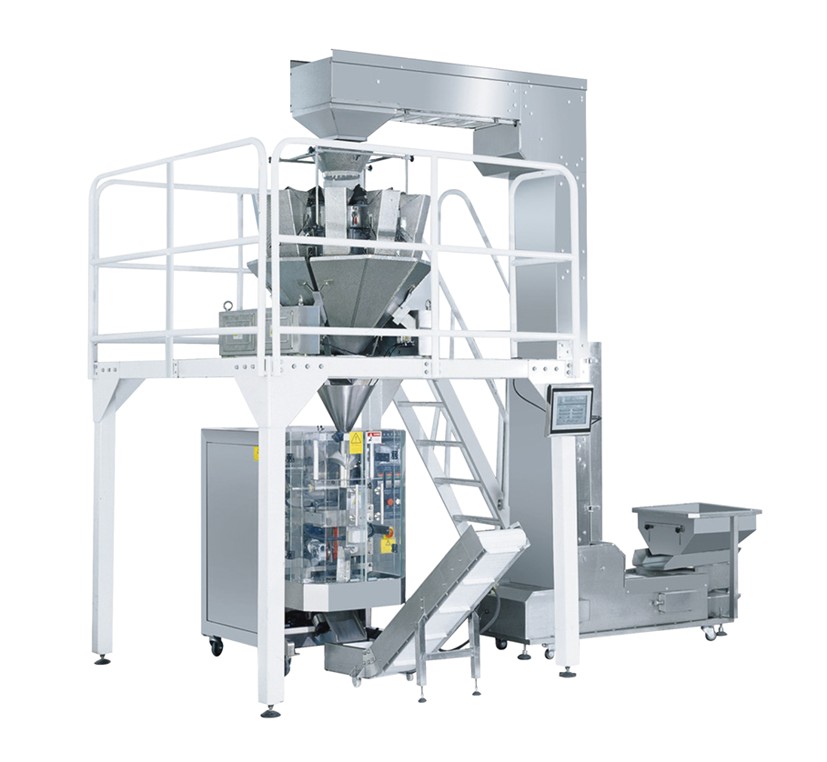

I. 398 complete set Include five parts:

① GQ-398 automatic vertical packaging machine

② 10-head computer combination scale

③ Z-type conveyor (with vibration device)

④ Finished product conveyor

⑤  platform

Application:

Suitable for the packaging of bulk objects requiring high metering accuracy and fragility, such as puffed food, potato chips, potpourri, jelly, candy, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, etc.

II. Whole set of technical parameters.

1. Packaging speed: 20-60 bags/min, depending on the quality of packaging film and materials.

2. Packing size: Bag making width 60-200mm length 50-300mm. Changing different film widths need to change the shaper, length limited adjustable.

3. Bag-making form: Packaging materials with rolled film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.

4. Whole set of power: About 3.8KW

5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packaging machine production has been equipped with a good source of gas.

6. Overall height of the package: about 3.5 meters.

III, Introduction of the machine.

1. GQ-398 automatic vertical packaging machine

*  Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.

*  High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.

*  Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.

*  Including automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.

*  The machine can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, and finished product output with the matching of the metering device.

Technical parameters:

Bag Type:

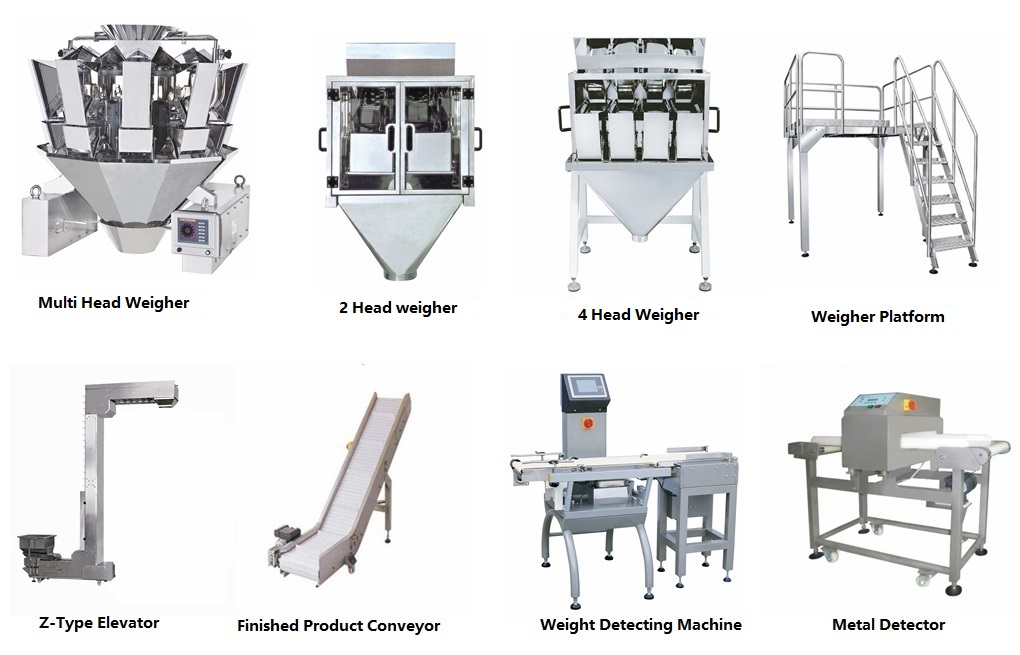

Optional Devices:

GQ-398 Random Accessories And Random Tools:
