GQ-520T Vertical Stand-up Bag Packaging Machine
I. 520 complete set Include five parts:
① GQ-520 Automatic Vertical Packaging Machine
② Multi-head weigher
③ Z-type conveyor (with vibration device)
④ Weigher platform
⑤ Finished product conveyor
Application:
Suitable for the packaging of bulk objects requiring high metering accuracy and fragility, such as puffed food, potato chips, potpourri, jelly, candy, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, etc.
II. Whole set of technical parameters.
1. Packaging speed: about 20-60 packages/min, depending on the quality of packaging film and materials.
2. Packaging size: replace different film widths need to replace the shaper, the length is limited adjustable.
3. The form of bag-making: packaging materials with roll film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.
4. The whole set of power: about 4.5 kilowatts
5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packaging machine production has been equipped with a good source of gas.
6. The overall height of the package: about 4.1 meters.
III. Introduction of the machine.

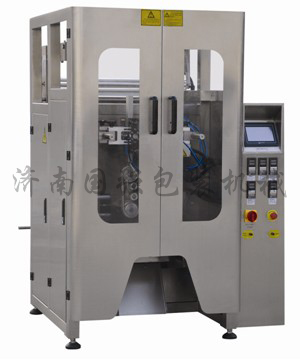

1. GQ-520 automatic vertical packaging machine
* Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.
* High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.
* Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.
* Including automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.
* The machine can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, and finished product output with the matching of the metering device.
Technical parameters:
Model | GQ-520T |
Packing speed | Max. 45bags/min |
Bag size | Front width: 100-180 mm |
Side width: 50-90mm | |
Side sealing width: 5-10mm | |
Length: 100-350mm | |
Bag type | Stand-up Bag |
Air consumption | 0.8 Mpa, 0.6m3/m |
Film width | Max. 520mm |

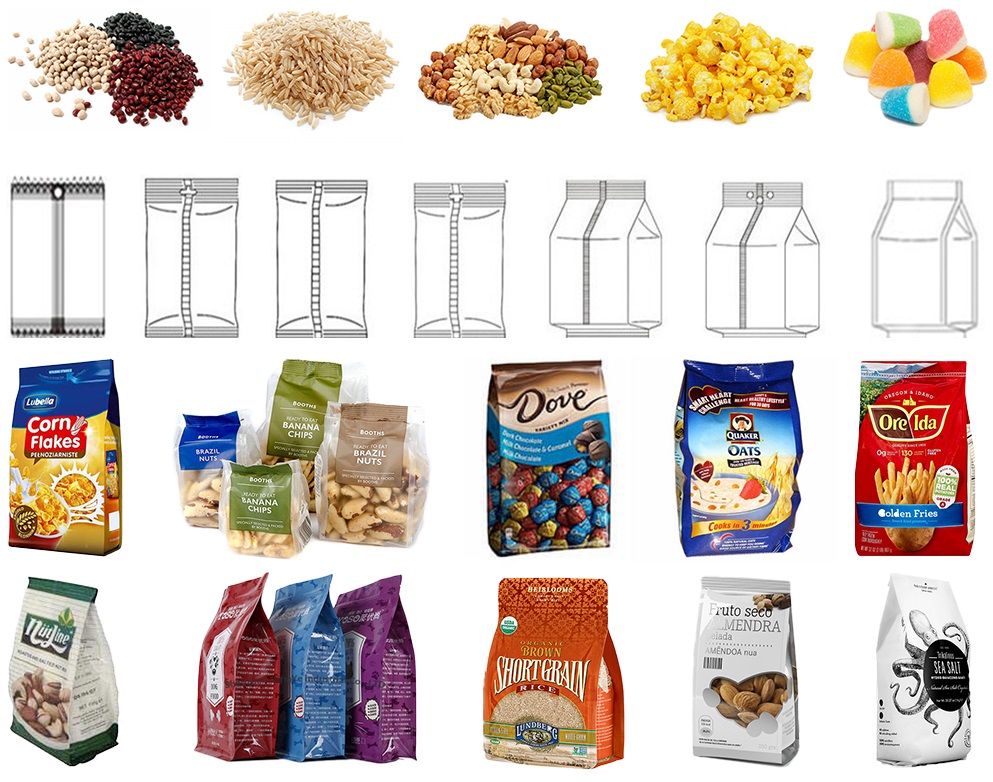

Bag Type:

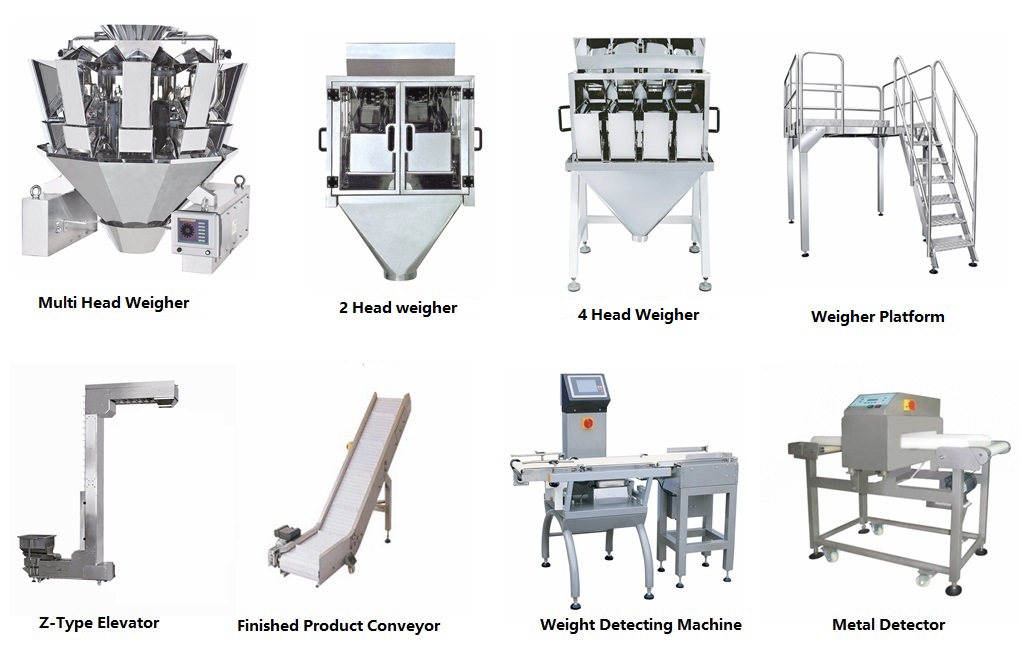

Optional Devices:
GQ-520T Random Accessories and Random Tools:
Random accessories Name | Specification | Quantity |
Cross-seal heat sink | 500W/55V AC | 2pcs |
Longitudinal sealing heat pipe | 2pcs | |
film timing belt | T10-560-18 | 1pcs |
High-temperature tape | / | 1pcs |
printing word grain | Matching with coding machine | 2box |
coding machine heat pipe | Matching with coding machine | pcs |
Matching with coding machine | 1roll | |
T type cutter | / | 1pcs |
Random tools Name | Specification | Quantity |
Hexagonal wrench | 4-14mm | 1pc |
Open-ended wrench | 12-14 | 1pc |
Brass brush | / | 1pc |
Movable wrench | / | 1pc |
Phillips screwdriver | / | 1pc |
