I. 520 whole set Includes four parts:

① GQ-520 automatic vertical packaging machine

② Spiral metering machine

③ Spiral feeding machine

④ Finished product conveyor

Application:

Suitable for packaging powdered objects requiring high metering accuracy, such as milk powder, protein powder, nutrition powder, etc.

II. The whole set of technical parameters:

1. Packing speed: 20-60 bags/min(depending on the quality of packaging film and materials.)

2. packaging size:

Bag width: 100-250mm

Bag length: 50-350mm.

Replace different film widths need to replace the formers, the length is limited adjustable.

3. The form of bag-making: packaging materials with roll film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.

4. The whole set of power: about 3.8 kilowatts

5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packaging machine production has been equipped with a good source of gas.

6. The overall height of the package: about 2.8 meters.

III. the introduction of the machine.

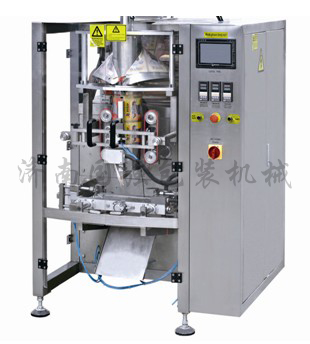

1. GQ-520 vertical automatic packaging machine

Performance characteristics：

* Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.

* High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.

* Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.

* Including automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.

* The machine can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, and output of finished products by matching with the measuring device.

2. Technical parameters:

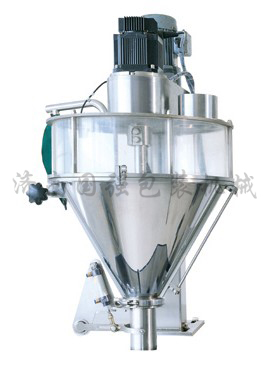

2. Spiral metering machine

1. Main performance and characteristics of spiral metering machine

1). A simple structure, reliable operation, simple and convenient maintenance.

2). The screw machine adopts rotary screw feeding, servo coding, microcomputer control technology is the biggest technical feature of the machine. Set coding, control in one, with sensitive action, low noise, stable, reliable, fast metering speed, high precision, etc. In addition, it also adopts a compound open type material box, easy to clean.

2. Spiral metering machine technical parameters:

1). Measuring method: Spiral rotary filling type

2). Packing weight: 10-2000g (change spiral attachment)

3). Weighing range: 1-2000g (resolution 1)

4). Packaging accuracy

     Packaging weight: ≤ 100g Deviation ≤ 0.5-1g

     Packing weight: 100-1000g Deviation ≤ 0.5%-1%

     Packaging weight: >1000g deviation ≤ 0.25%-0.5%

5). Packaging speed: 10-50 bags/min

6). Power supply, power: Three-phase 380V/ single-phase 220V /1.5kw 50-60HZ

7). Weight of the whole machine: 80Kg

8). Tank volume: 50L

3. Spiral feeding machine

1. Product introduction:

The machine adopts screw-type feeding, and the hopper can be vibrated.

It is suitable for conveying all kinds of powder and small granular materials.

2. Technical parameters：

1). Lifting height (standard): 2.35m

2). Lifting capacity: 3 cubic meters/hour

3). Specifications: According to customer requirements

4). Material: Carbon steel, stainless steel.

5). Weight: 100Kg

4. Finished product conveyor

Function: Automatically pack the finished bags to the post-packaging testing equipment or packing platform

Technical parameters：

Conveying speed: 30m/min

External dimensions: 2110×340×500mm

Voltage: 220V/45W

Weight: 30Kg
