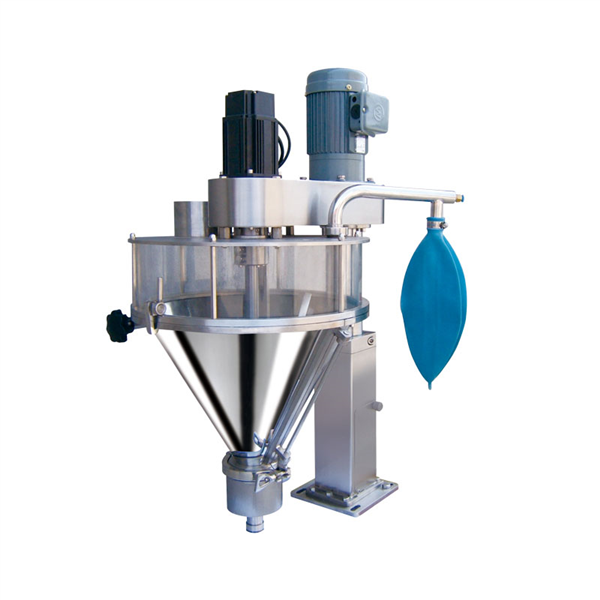

Powder Metering Machine
1. The material box can be easily disassembled and cleaned without tools
2. Servo motor and servo drive control screw
3. All stainless steel structure
4. Equipped with height adjustment handwheel, convenient to adjust the height of the whole machine
5. Replaceable spiral attachment, can adapt to a variety of materials such as ultra-6. fine powder to small particles. The whole machine is made of stainless steel, hydraulic lifting. Particularly suitable for GMP certification, food hygiene certification, the requirements of anti-corrosion chemical products, and other packaging.
6. The unique mechanical transmission method makes the structure and its simplicity, good stability, and strong overload capacity. Filling adopts servo motor moving spiral, with the advantages of accurate positioning, high precision, fast speed, large torque, long life, speed can be set, good stability, etc.
7. Stirring adopts a Taiwan-made maintenance-free reducer motor: low noise, long life, life-long maintenance-free. Designed to weigh the feedback-specific gravity tracking type, to overcome the shortcomings of the weight change due to changes in the specific gravity of the material.
8. Fully sealed air-resistance glass stainless steel composite material box, material movement at a glance, dust does not leak, easy to fill nitrogen, high nitrogen content. Filling export suction dust suction device, to protect the workshop environment.
1. Measuring method: spiral rotary filling type
2. Packaging weight: 10-5000g (change spiral attachment)
3. Packaging accuracy: ≤ ± 0.3-1%
4. Packaging speed: 10-60bags / min
5. Power: three-phase 380V (or custom single-phase 220V) 50-60Hz
6. Overall machine power: 1.8KW filling servo motor 1500W, torque 4.78N.m; stirring motor 200W.
7. Weight of the whole machine: 130Kg
8. Whole machine volume: 540×790×1020mm (not counting the length of the spiral attachment)
9. Tank volume: 50L
The machine is specially designed and manufactured for powder, ultra-fine powder-like materials, etc. It can automatically complete the work of measurement, filling, nitrogen filling, etc. It is suitable for measuring those powder and granular materials that are easy to flow or have very poor fluidity, such as milk powder, protein powder, cocoa powder, chicken essence powder, glucose, food additives, feed, pharmaceutical raw materials, pesticides, dyes, flavors, and fragrances, etc.
